In today’s premium packaging market, brands are no longer satisfied with standard folding cartons. Instead, they demand innovative, complex packaging boxes with magnetic closures, drawer systems, hidden flaps, and multi-layer opening experiences.
These advanced structures elevate brand value—but they also introduce a critical risk:
👉 What happens if the box doesn’t close properly after production? Who is responsible?
This is one of the most common disputes between brands, designers, and manufacturers.
At BM, with over 10 years of experience in custom packaging boxes, display stands, and paper-based solutions, we help clients bridge the gap between creative design and manufacturable reality.
This guide explains:
- What dieline setup means for complex packaging boxes
- Why closure issues happen
- Who is responsible in different scenarios
- How to prevent problems before production

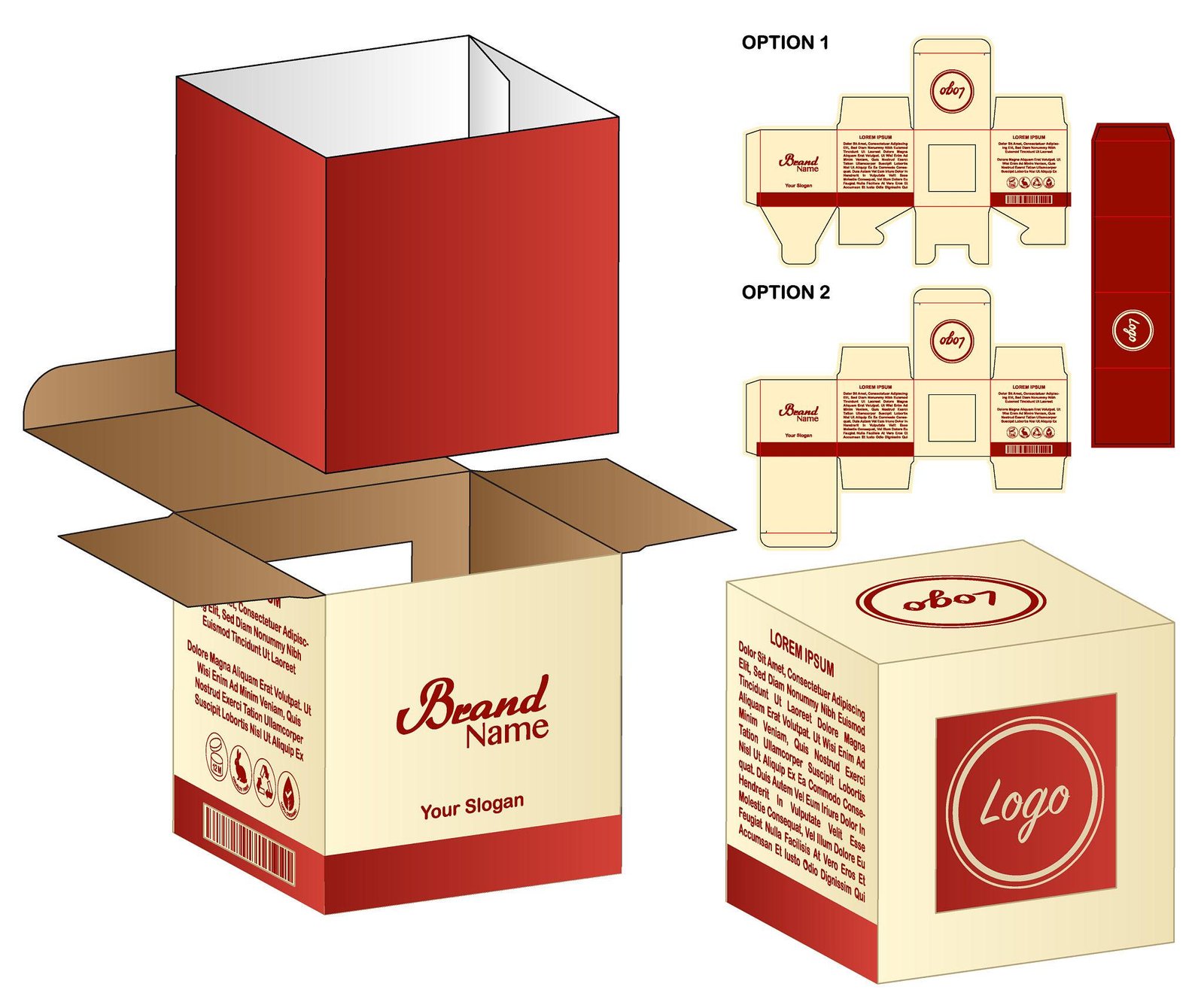

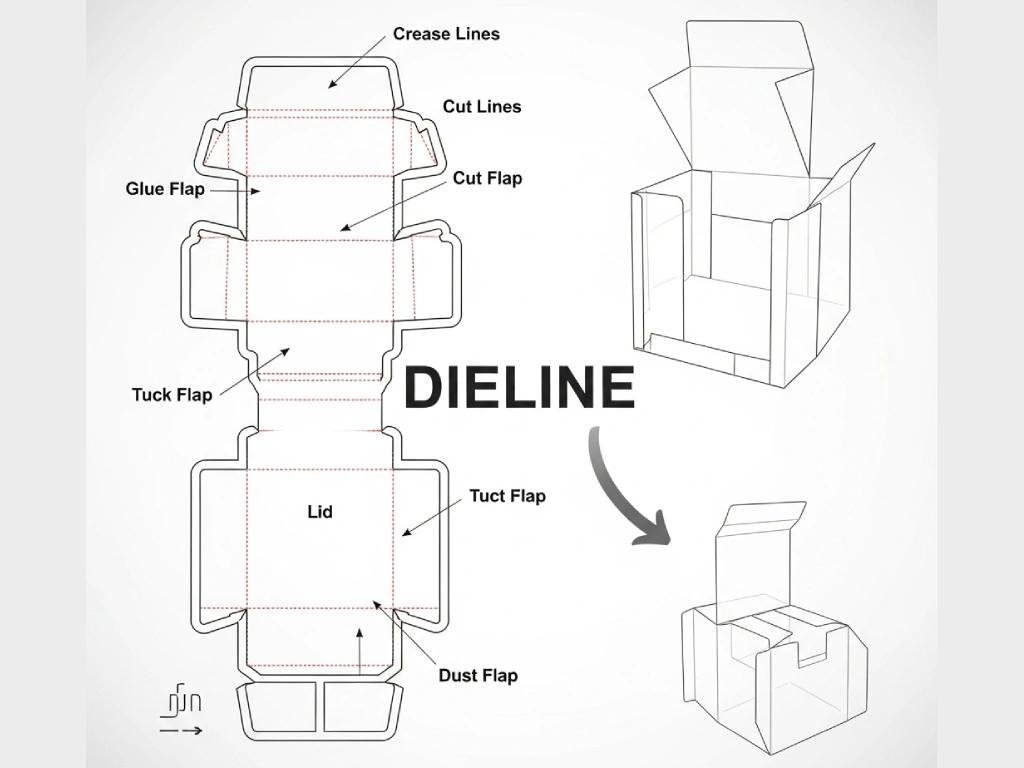

What Is a Dieline in Packaging Boxes Design?
A dieline is the technical blueprint of packaging boxes. It defines:
- Cut lines
- Fold lines
- Glue areas
- Structural dimensions
For simple packaging boxes, dielines are straightforward. But for complex structures, they become engineering documents that determine whether the box will function correctly.
Why Complex Packaging Boxes Often Fail to Close Properly
Closure issues are rarely caused by a single factor. They usually result from a combination of design and production variables.
1. Incorrect Dieline Dimensions
Even a 1–2 mm error can cause:
- Misalignment
- Loose or tight closures
- Structural instability
2. Material Thickness Miscalculation
Designers often forget:
- Paper thickness
- Lamination layers
- Board stiffness
This leads to inaccurate folding behavior.
3. Overly Complex Structure Design
Innovative packaging boxes may include:
- Multiple folds
- Hidden locks
- Magnetic closures
Without proper engineering, these features can fail.
4. Poor Tolerance Control
Manufacturing tolerances must be considered:
- Cutting deviation
- Folding variation
- Glue positioning
5. Lack of Prototyping
Skipping sample testing is one of the biggest risks.
Who Is Responsible When Packaging Boxes Don’t Close Properly?
This depends on project workflow and responsibilities.
Scenario 1: Client Provides the Dieline
Responsibility: Client / Designer
If the client supplies the dieline:
- Manufacturer follows provided design
- Structural errors originate from the design
👉 In this case, responsibility typically lies with the client or design agency.
Scenario 2: Manufacturer Creates the Dieline
Responsibility: Manufacturer
If BM or another supplier designs the dieline:
- We are responsible for structural accuracy
- We must ensure functionality
👉 Responsibility lies with the manufacturer.
Scenario 3: Collaborative Development
Shared Responsibility
Most real-world projects fall into this category.
- Client provides concept
- Manufacturer refines structure
- Both approve samples
👉 Responsibility is shared, depending on approval stages.
Scenario 4: Approved Sample vs Mass Production
Critical Rule
👉 If the sample is approved, the sample becomes the standard.
If mass production differs from the approved sample:
- Manufacturer is responsible
If production matches the sample but the design fails:
- Responsibility shifts to design/approval side
Key Insight: Responsibility Depends on Approval, Not Just Design
How to Prevent Closure Issues in Complex Packaging Boxes
1. Start with Structural Engineering, Not Just Design
Creative concepts must be translated into:
- Realistic structures
- Manufacturable designs
2. Account for Material Thickness
Always consider:
- Paper GSM
- Board thickness
- Coating layers
3. Define Tolerances Clearly
Specify acceptable variations:
- ±0.5 mm for critical areas
- Glue positioning tolerance
4. Conduct Physical Prototyping
Never skip:
- White samples (structure testing)
- Printed samples (final validation)
5. Use 3D Simulation Tools
Modern tools allow:
- Virtual folding tests
- Structural validation
6. Test Real Use Conditions
Simulate:
- Opening/closing cycles
- Transportation stress
- Retail handling
Best Practices for Designing Complex Packaging Boxes
1. Simplify Where Possible
Complexity increases risk.
2. Prioritize Function Over Aesthetics
A beautiful box that doesn’t close is a failure.
3. Use Proven Structures
Adapt existing designs instead of reinventing everything.
4. Collaborate Early with Manufacturer
Involve experts during design phase.
BM’s Approach to Reliable Dieline Setup
At BM, we ensure that every packaging box design works in reality—not just on paper.
Our Process
1. Concept Evaluation
We assess feasibility of design ideas.
2. Structural Engineering
We create optimized dielines considering:
- Materials
- Tolerances
- Production methods
3. Prototyping
We produce:
- White samples
- Functional prototypes
4. Testing
We verify:
- Closure performance
- Durability
- Alignment
5. Production Control
We maintain strict quality standards.
Real Case Study: Magnetic Gift Box Failure
A client designed a luxury magnetic packaging box.
Problem
- Lid did not align
- Magnet failed to close properly
Root Cause
- Incorrect thickness calculation
- Misplaced magnet position
Solution
- Redesigned dieline
- Adjusted board thickness
- Repositioned magnets
Result
- Perfect closure
- Improved user experience
Common Mistakes to Avoid
1. Ignoring Material Impact
Paper is not rigid—it bends and compresses.
2. Skipping Sample Approval
Leads to unexpected failures.
3. Overcomplicating Design
More features = more risk.
4. Poor Communication
Misalignment between client and manufacturer causes errors.
Future Trends in Complex Packaging Boxes Design
1. Digital Twin Simulation
Virtual testing before production.
2. AI-Assisted Structural Design
Optimized dielines automatically.
3. Precision Manufacturing
Improved accuracy reduces errors.
Who Is Responsible and How to Avoid the Problem
Responsibility Summary
- Client-provided dieline → Client responsibility
- Manufacturer-designed dieline → Manufacturer responsibility
- Approved sample → Benchmark for accountability
Final Takeaway
👉 The best way to avoid responsibility disputes is to prevent problems before they happen.
Final Insight
Complex packaging boxes require more than creativity—they require engineering, testing, and collaboration.
At BM, we help brands turn innovative ideas into functional, reliable, and premium packaging solutions.
